Optimize your order flows with a cutting-edge, versatile and connected printer.
Main features
- Printer connected to the internet via 4G SIM card and/or Ethernet LAN network cable
- Standard thermal paper reel max. width 80mm
- Plug&play connection with major eCommerce players like Shopify, Prestashop, WooCommerce...
- Easy integration with HubRise for connection with delivery platforms Uber Eats, Deliveroo, JustEat, TakeAway, Delicity, Glovo, FoodPanda...
- Lowcode development with Zapier, Make...
- REST API for Developers (API Documentation)
Applications
Restaurants, delivery platforms, local shops, online sellers, terminals...

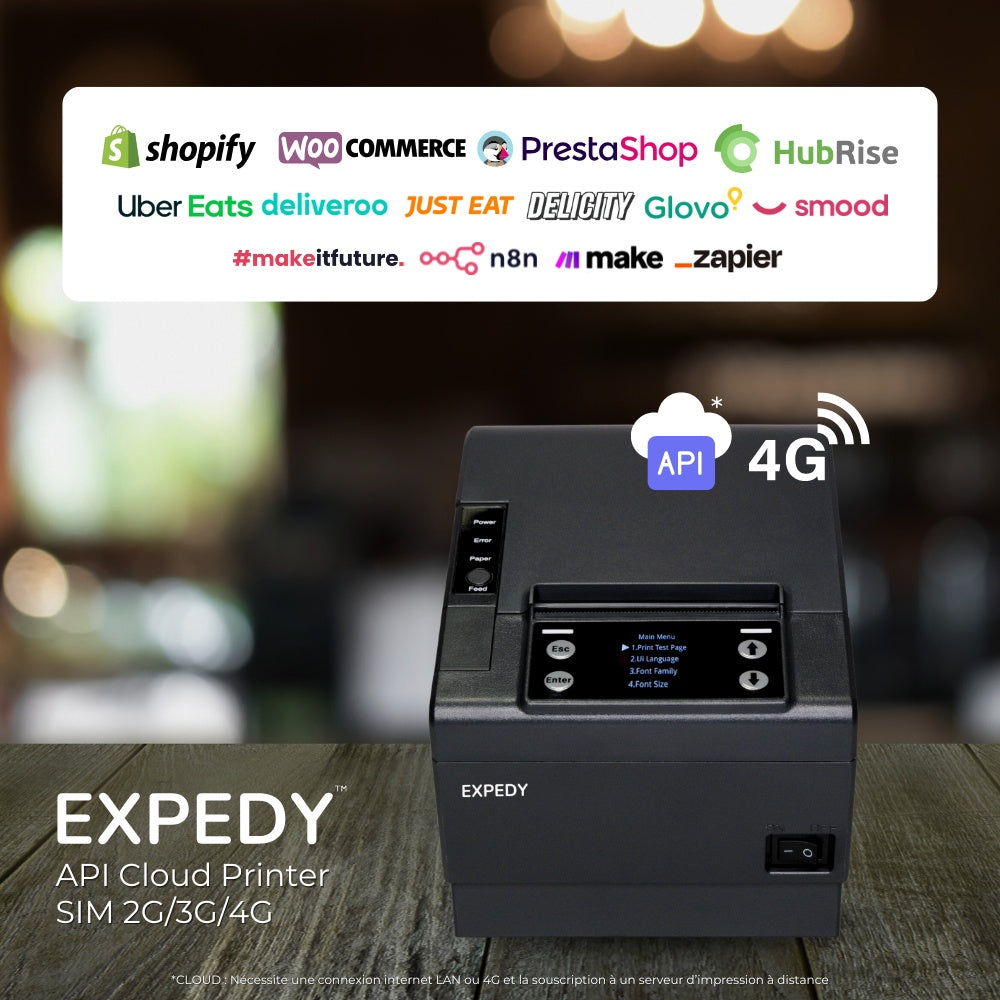

Integrations
Shopify, WooCommerce, Prestashop, GoodBarber, WCFM, Dokan, Zenorder, HubRise, Deliverect, Zapier, Make, Uber Eats, Deliveroo, Just Eat, TakeAway, Smood, Coopcycle, FoodPanda, Doordash, LaBonApp, Bowo, BarMade, Oracle GloriaFood...
See the full list
Cloud Service Installation
- Enable Cloud Service
- Insert the paper spool
- Connect the power supply
- Power on
- The LCD screen should display "Server connected"
- Follow the instructions according to the integration or contact the partner
Installation via Bluetooth (without internet)
- Insert the paper spool
- Connect the power supply
- Power on
- Follow the instructions:

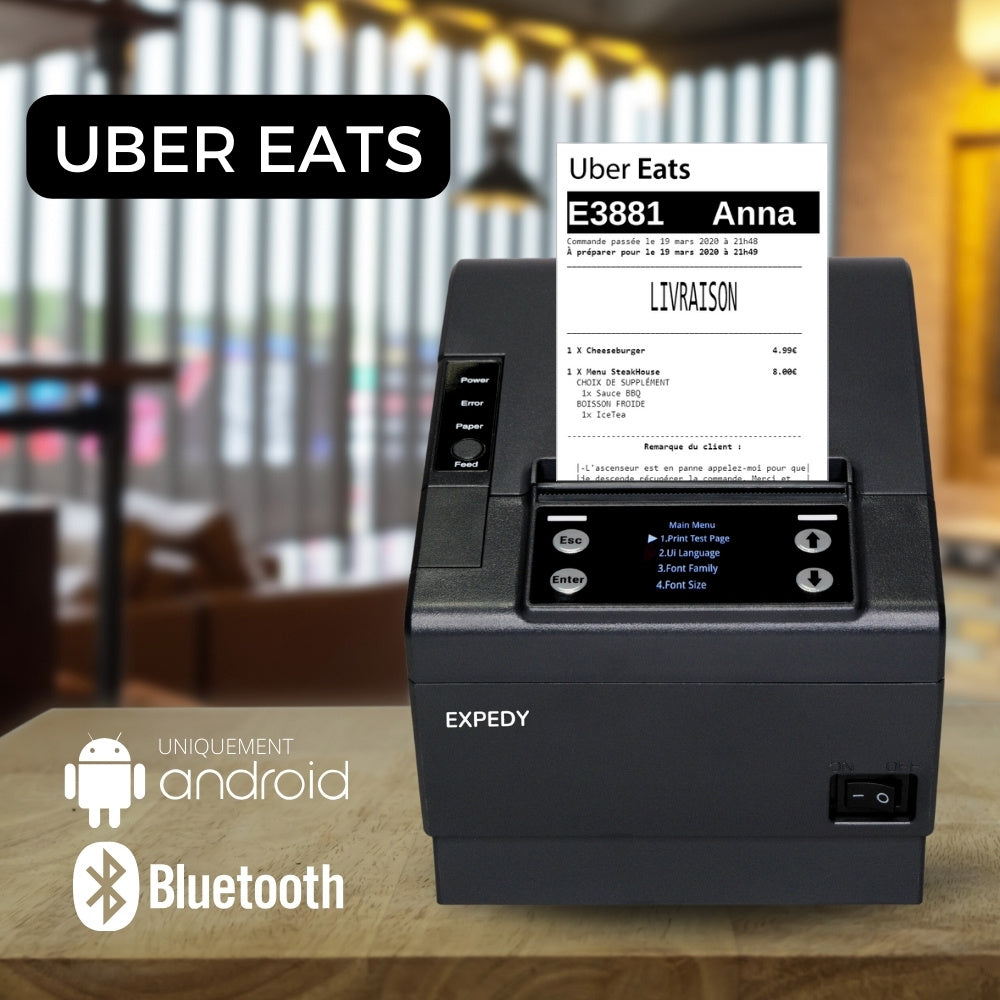

Uber Eats Android App | DoorDash | GrubHub
Technical characteristics
Plug&Play
Ready-to-use 4G SIM internet connection. Merchant site connectors, delivery platforms and OpenAPI dev.

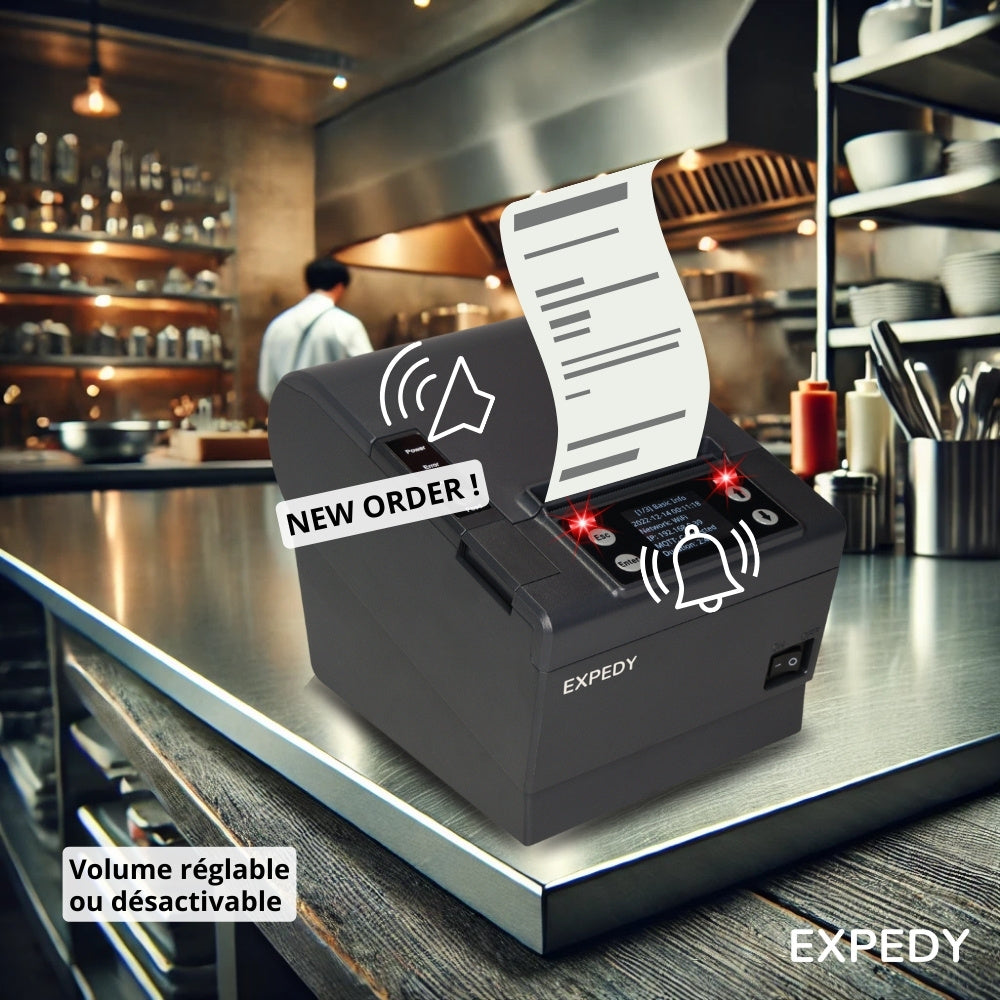

New ticket alert
LED flash, Beep and loud voice to alert a new command (can be disabled).
Robust

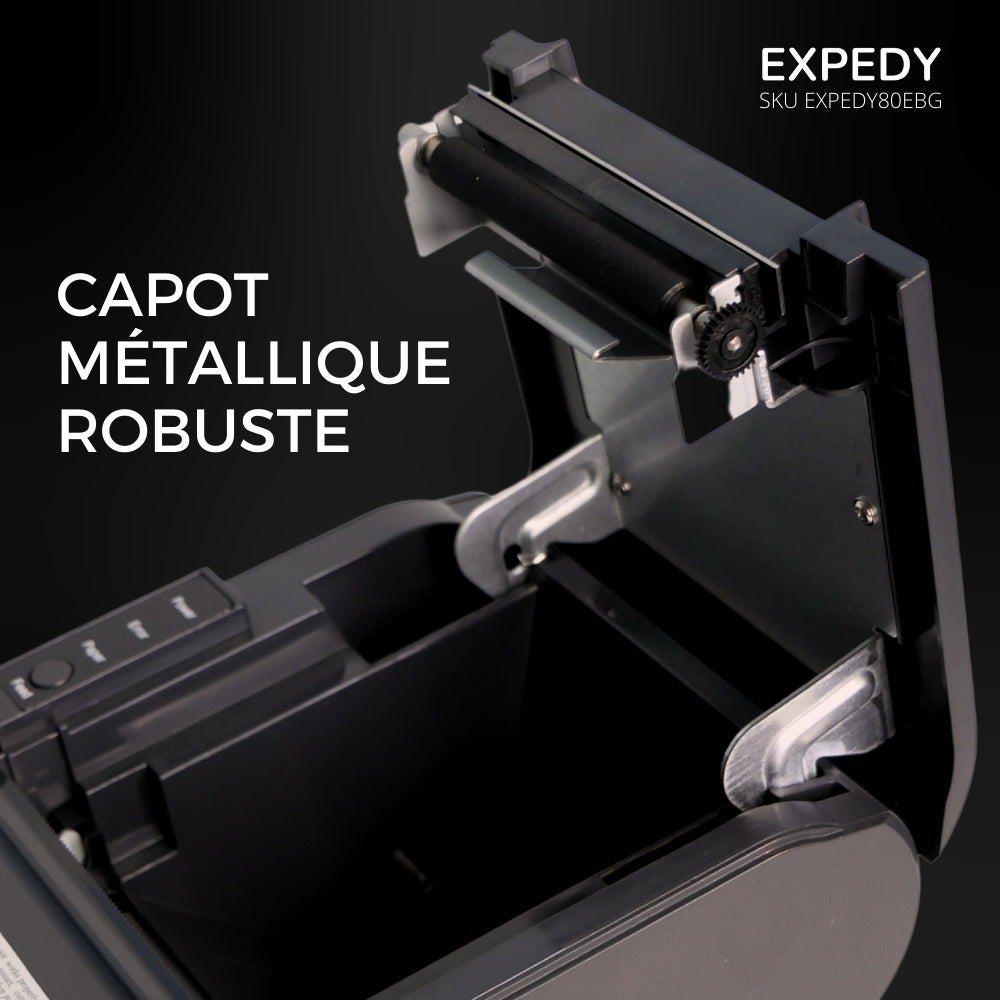

Metal paper loading cover. Suitable for kitchen and commercial use.
Large paper capacity width 80mm x Φ80mm.

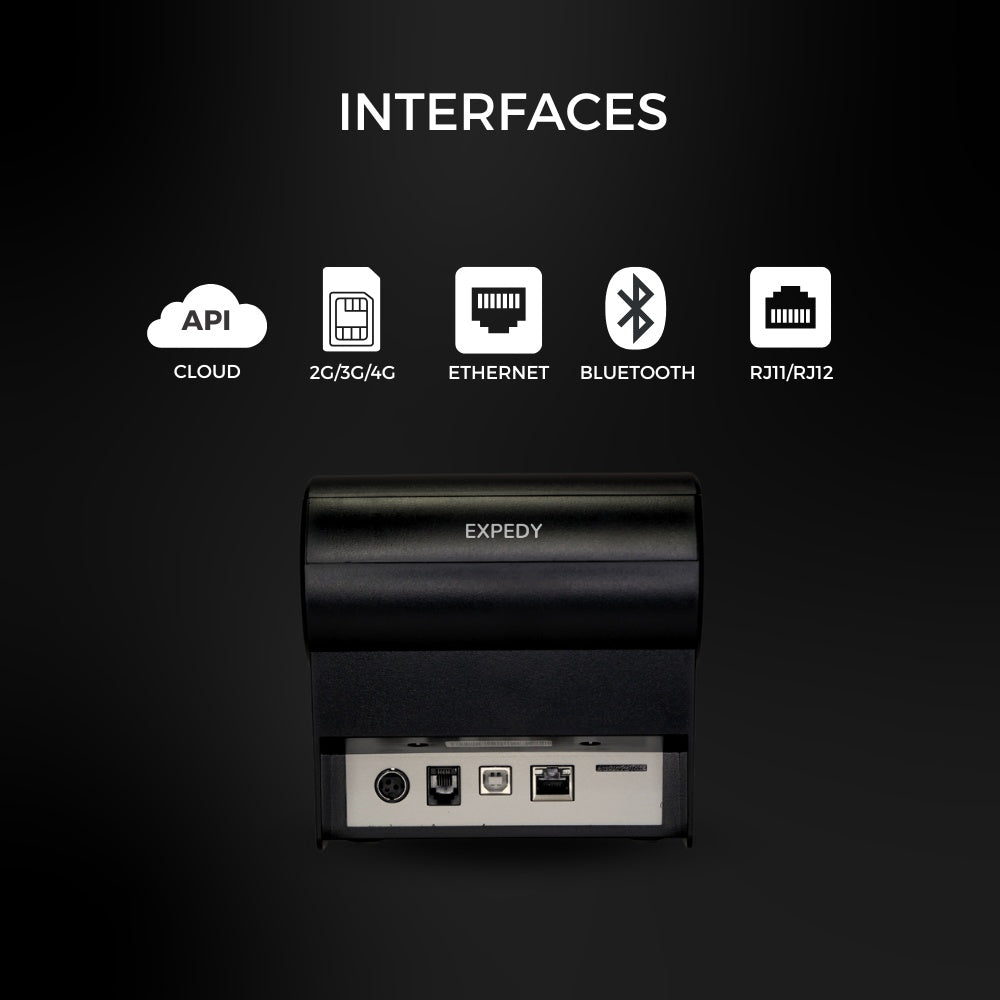

Interfaces
- 2G/3G/4G SIM card slot
- Ethernet LAN DHCP
- Bluetooth
- TypeB USB 2.0

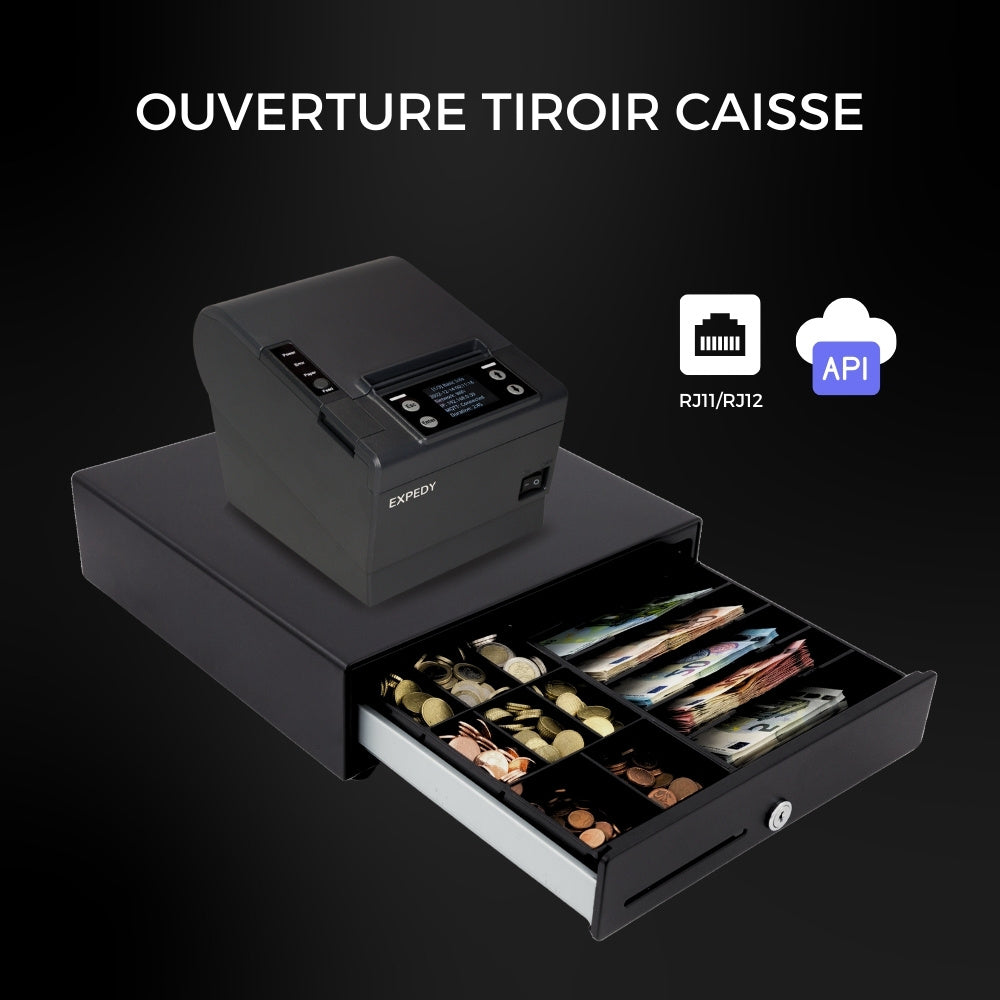

- RJ12 24V/1A cash drawer
Sound alert
Buzzer: New ticket
Speaker volume:≥105dB
Startup
Server Connected
Paper error
Open lid
Paper printing
Type: Thermal paper
Width: Max. 79.5± 0.5mm
Diameter: Max. 80mm
Loading: Hood
Cutter
Paper thickness:
0.048 ~ 0.08mm
Lifespan:>1 Million
Indicator light
Green LED: Server connection
Red LED: Error
LED Flash: New Ticket
Sensory sensors
Paper missing (optical)
Hood open (mechanical)
Paper jam (optical)
Paper PickUp (optical)
Temperature
Orders
REST API
ESC POS (BT,LAN,USB)
MQTT ( optional )
Barcodes
UPC-A, UPC E, JAN13(EAN13), GTIN, JAN8(EAN8), CODABAR; ITF, CODE39, CODE93, CODE128, QR CODE
Characters
User-defined characters
+ 45 languages:
French, English, Chinese...
GB18030 24X24
ASCII numbering 9X17,12X24
Weight and dimensions
1455 grams (without paper)
195(L)x145(W)x143.3(H)mm
Ethernet
Port: RJ45
Speed: 10/100Mbps
Bluetooth
Supported protocols:
BLE, SPP, IBEACON
Frequency: 2.4GHz
Food
DC 24V/2.5A
Port: DIN 4P

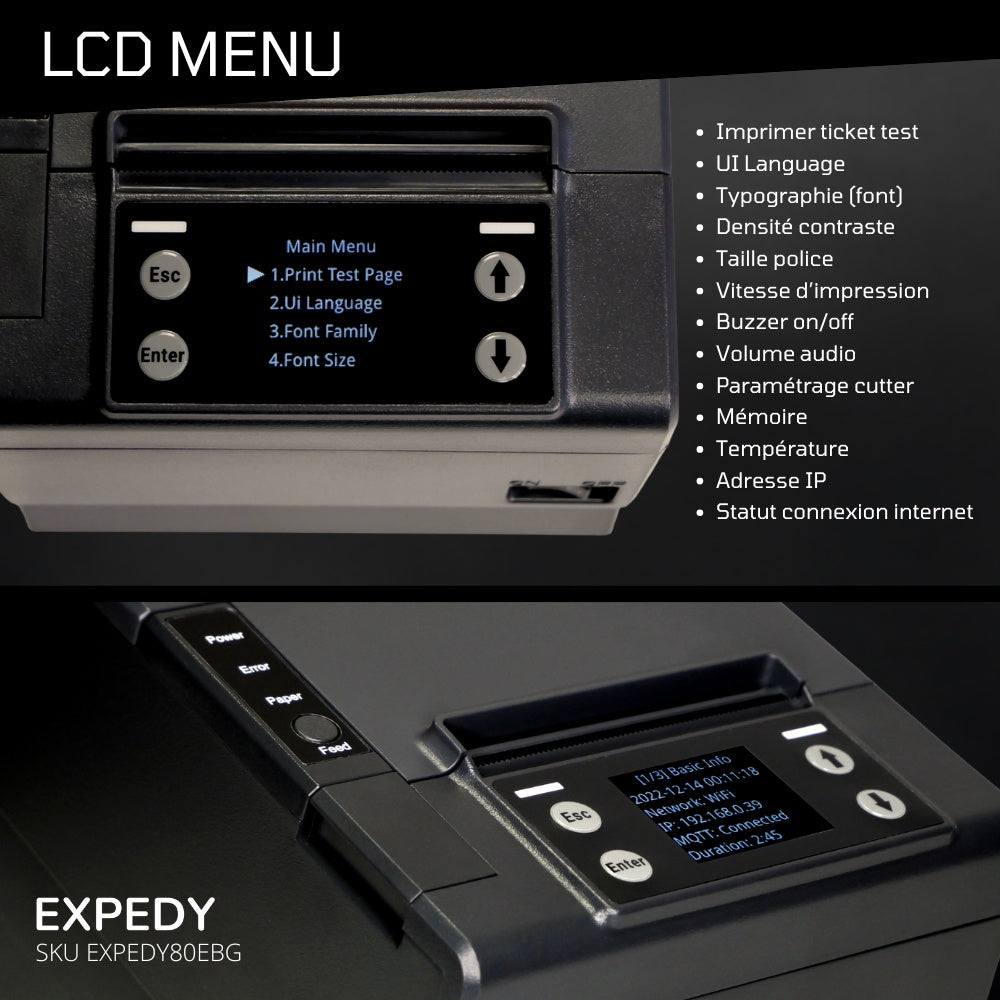

LCD Menu Screen
Print test ticket
UI Language
Typography (font)
Contrast density
Font size
Print speed
Buzzer on/off
Audio volume
Cutter settings
Memory and temperature
IP address
Server status
Image (logo)
Support raster bitmap print
Support downloaded bit image print
Environment
Use:
0~45ºC, 0~80%RH
Storage:
-10~60ºC, 10~90%RH
